AODD Pumps - Working Principle for Materials & Chemical Transfer
An overview of our industrial Air Operated Double Diaphragm (AODD) pumps in PP, SS 316, and Aluminium, supplied across Hyderabad and Secunderabad for chemical and slurry handling.
Back to All Products
Industrial Fluid Handling & Pumps

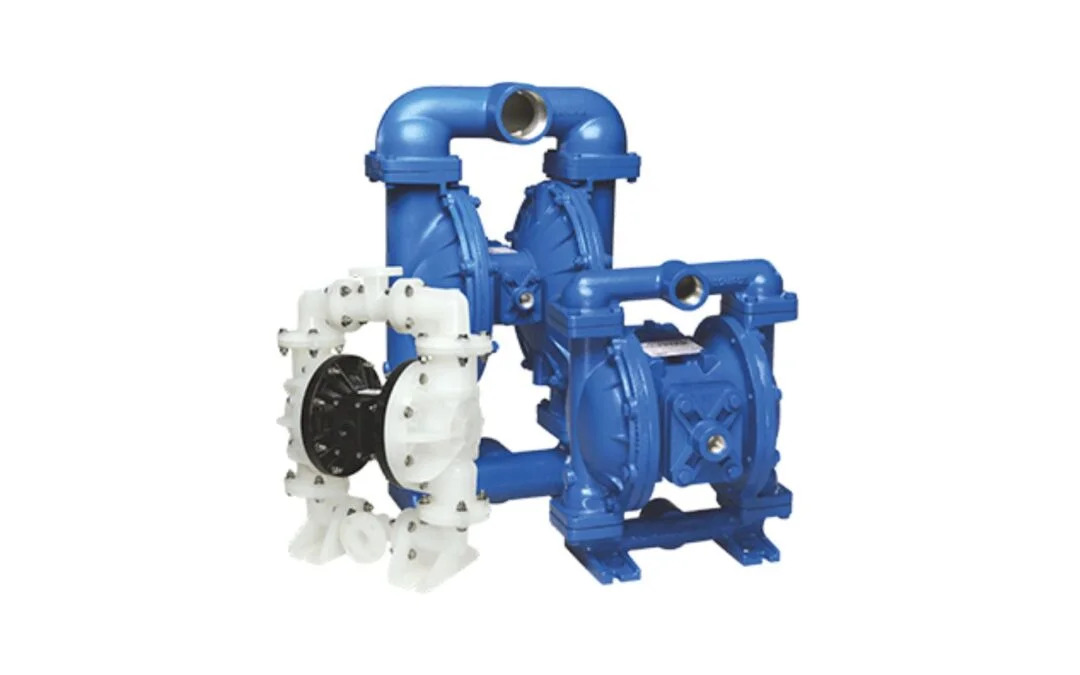

Air Operated Double Diaphragm (AODD) Pumps
4.8(28 reviews)
₹18,500 - ₹1,25,000 per unit
Reliable Industrial supplies premium Air Operated Double Diaphragm (AODD) pumps from global leaders including Wilden, Sandpiper, Aro, and Graco across Hyderabad, Secunderabad, and Telangana.
Engineered for safe handling of hazardous, corrosive, shear-sensitive, and high-viscosity fluids, our pneumatic pumps feature self-priming capability, dry-running tolerance, and explosion-proof air-driven operation.
Bulk Orders Available
Competitive pricing for large quantities
Fast Delivery
Across Telangana and all over India
Quality Assured
Only genuine, branded products
Available Brands
WildenSandpiperAroGracoVerderairYamada
Key Features
- Air-driven positive displacement design with stall-free pneumatic air valves
- Available in Polypropylene (PP), PVDF, SS 316, Cast Iron, and Aluminium body options
- Diaphragm elastomers available in PTFE (Teflon), Santoprene, Neoprene, and Buna-N
- Self-priming from dry conditions up to 6 meters without foot valves
- Safe dry-running capability without causing damage to internal components
- Explosion-proof operation suitable for ATEX-rated hazardous environments
- Variable flow rate and discharge pressure control via incoming air regulation
Applications
- Corrosive chemical, acid, solvent, and alkali transfer in chemical processing plants
- Sludge, slurry, and effluent dewatering in ETP, STP, and wastewater facilities
- Viscous fluid transfer including paints, varnishes, inks, adhesives, and resins
- Hygienic product pumping in pharmaceuticals, cosmetics, and food processing
- Ceramic glaze, slip transfer, and abrasive mineral slurry circulation
- Sump emptying, barrel unloading, and tank-to-tank batch transfer
Product Resources
Additional Product Information
Open the product document for additional specifications and information.
Specifications
Material of Construction (MOC)
Polypropylene (PP) / SS 316 / Aluminium / PVDF / Cast Iron
Port Sizes
1/2 to 3 BSP/NPT/Flanged connections
Diaphragm Materials
PTFE (Teflon) / Santoprene / Neoprene / NBR (Buna-N)
Max Flow Rate
15 LPM to 900 LPM (depending on port size)
Max Operating Pressure
7 to 8.6 bar (100 to 125 PSI)
Air Inlet Connection
1/4 to 3/4 BSP/NPT
Suction Lift (Dry)
Up to 5 - 6.5 meters
Customer Reviews
4.8 out of 5based on 28 reviews
Price Range: ₹18,500 – ₹125,000

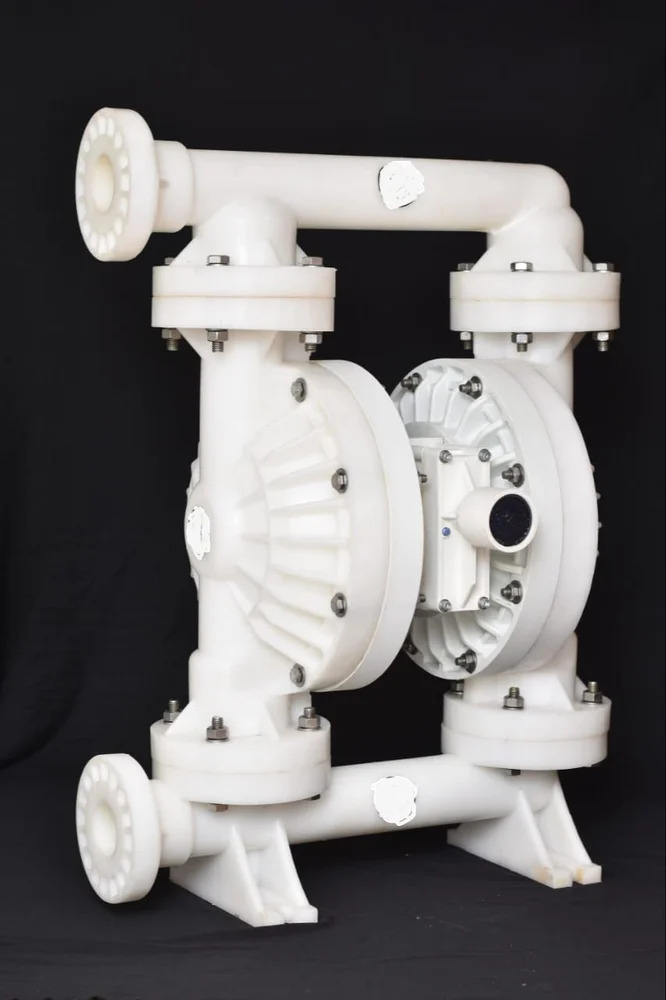

"Purchased a 1.5 inch Polypropylene Wilden AODD pump for our chemical processing unit in Cherlapally. Outstanding performance with aggressive acids and fast dispatch."
Venkat Rao
Jun 2026

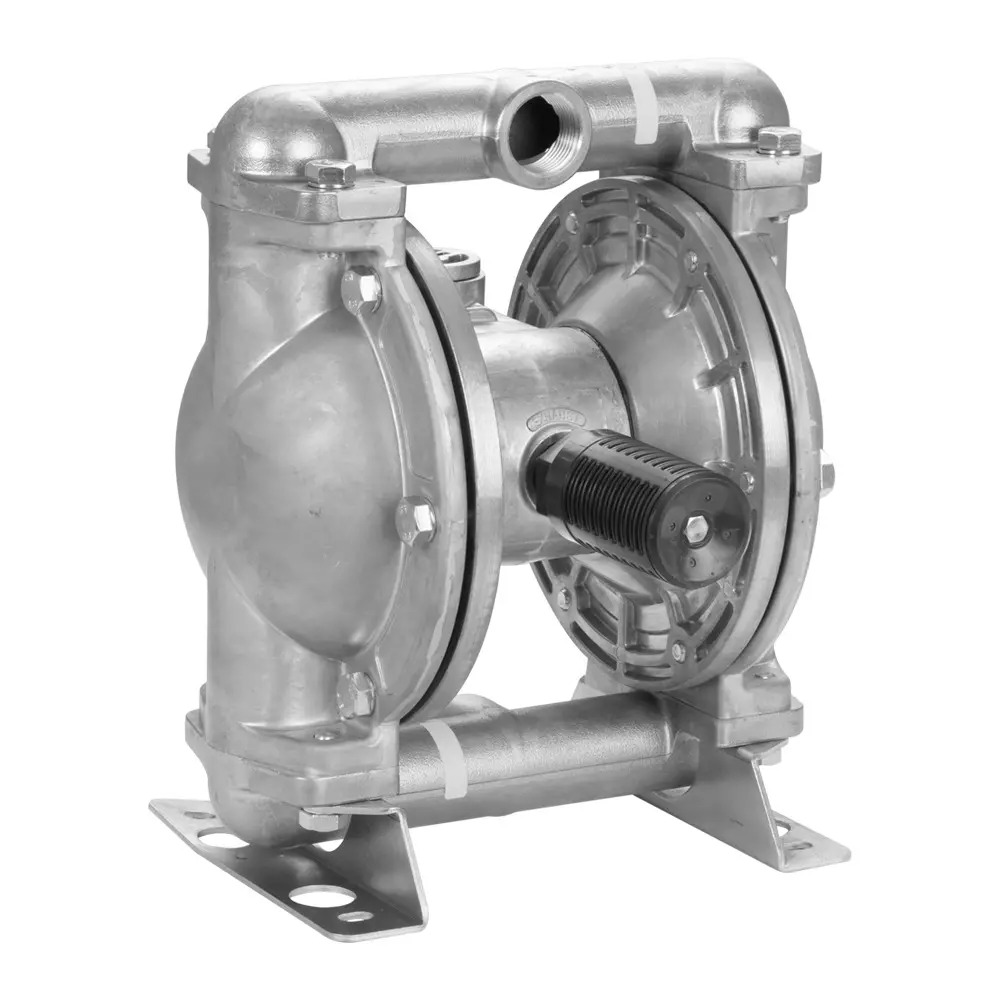

"Great pricing on SS 316 Sandpiper diaphragm pumps. Reliable Industrial assisted us with the right elastomer selection for our solvent handling line."
K. Srinivas Reddy
Apr 2026
"Sturdy 1-inch aluminium diaphragm pump for paint transfer. Excellent build quality, zero leakage, and runs reliably on our existing shop compressor."
Arun Joshi
Feb 2026
Price Range: ₹18,500 – ₹125,000
